H.265 16CH 4K 48V POE NVR For 3.0MP 4.0MP 5.0MP ONVIF IP PTZ Camera CCTV System Surveillance 2SATA 8CH POE NVR H.264 P2P Cloud

H.265 16CH 4K 48V POE NVR For 3.0MP 4.0MP 5.0MP ONVIF IP PTZ Camera CCTV System Surveillance 2SATA 8CH POE NVR H.264 P2P Cloud
  • Продавецpopularitywork.info
  • Список ценUS $125.79piece
  • Продажная ценаUS $125.79piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,1 (933)

Oписание продукта

11.11

2018.11.01-11.30



  • Get US $10.00 off when you spend over US $200.00 in this store. (Incl. shipping costs)
  • Get US $26.00 off when you spend over US $500.00 in this store. (Incl. shipping costs)
  • Get US $55.00 off when you spend over US $1000.00 in this store. (Incl. shipping costs)



2018.10.01-10.31

store coupon picture

AHD-camera-link-pciture-show_01AHD-camera-link-pciture-show_02AHD-camera-link-pciture-show_03AHD-camera-link-pciture-show_04AHD-camera-link-pciture-show_05AHD-camera-link-pciture-show_06AHD-camera-link-pciture-show_07AHD-camera-link-pciture-show_08AHD-camera-link-pciture-show_09AHD-camera-link-pciture-show_10

ahd-camera-and-dvr-power-fill-light-and-other_01ahd-camera-and-dvr-power-fill-light-and-other_02ahd-camera-and-dvr-power-fill-light-and-other_04

16CH-AHD-hybrid-DVR_0116CH-AHD-hybrid-DVR_0216CH-AHD-hybrid-DVR_0316CH-AHD-hybrid-DVR_0416CH-AHD-hybrid-DVR_0516CH-AHD-hybrid-DVR_0616CH-AHD-hybrid-DVR_0716CH-AHD-hybrid-DVR_0816CH-AHD-hybrid-DVR_0916CH-AHD-hybrid-DVR_10

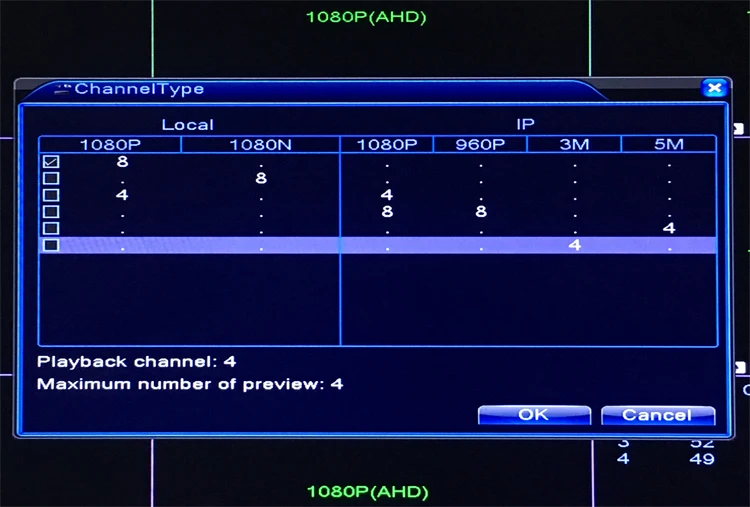

 1080P 2mp hybrid 8ch wifi ahd dvr picture 2AHD DVR Channel type

  • analog; 8*1080P,8*1080N
  • Network only;8*1080+8*960P,16*960P,4*3M,4*5M
  • hybrid; 4*1080P(analog)+4*1080P(network)

what is1080P AHD-H DVR



Q: What is 1080P AHD-H DVR?

A:  1080P HD Coaxial DVR is highest format HD DVR(1920X1080); the quality is best for all HD DVR;it support all AHD camera(1080P/960P/720P),960H,D1.




HTB1xMPoSXXXXXayaFXXq6xXFXXXu

Q: What is 6-in-1 function?

A:6-in-1 means that support AHD(AHD Camera),TVI(TVI Camera),CVI(CVI Camera),DVR(analog),NVR(IP Camera)  and XVI Function.




1080P Surveillance Camera XMeye Hi3521A 16 Channel 16CH 1080N 5 in 1 Coaxial Hybrid Wifi TVi CVI IP NVR AHD DVR FreeShipping 02



Q:   What is XVI  function?



A:   XVI also known as AXVI (Full name is Advanced XM Video Interface), it is a coaxial transmission video format newest developed by XM. Products with XVI are superior to competitors not only because of its compatibility with AHD,TVI protocols, but also its unique feature.





the advantage of AHD DVR pciture 01

what is ahd dvr

1080n 16ch ahd dvr picture

Hybrid ahd dvr Product Show





Metal Case XMeye 8CH and 4CH 1080P 2MP Full HD Surveillance Video RecorderHybrid 5 in 1 WIFI Onvif NVR TVI CVI AHD DVR Free Shipping 02Metal Case XMeye 8CH and 4CH 1080P 2MP Full HD Surveillance Video RecorderHybrid 5 in 1 WIFI Onvif NVR TVI CVI AHD DVR Free Shipping 00

Hisiclion Sensor Silver White Metal Case 1080P,1080N, 960P,720P 8CH and 4CH Coaxial Hybrid 5 in 1 TVI CVI NVR AHD DVR Free Shipping 03

Hisiclion Sensor Silver White Metal Case 1080P,1080N, 960P,720P 8CH and 4CH Coaxial Hybrid 5 in 1 TVI CVI NVR AHD DVR Free Shipping 05

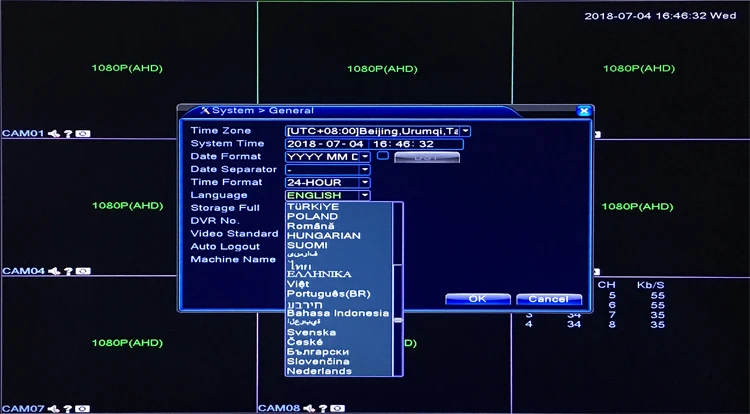

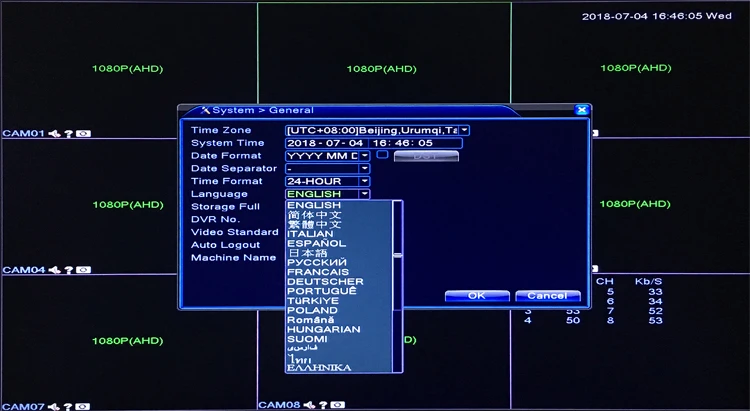

8CH 1080P AHD Hybrid DVR Screeshot:







1



2



3



4



5



basic parameters picture

  Model6008T-MH(D)
System Main processorHi3521A
Operating systemembedded Linux
System resourcesSimultaneously multi-channel real-time recording, playback, network
operation, USB backup
InterfaceOperator interfacesupport 16-bit true color graphical menu interface and mouse operation
Preview 1/4/8/9
VideoCodec H.264
Monitor qualityVGA,HDMI;HD
Playback quality AHD-H/ AHD-M /D1
Encode ability8*1080N/8* AHD-H
Decode ability 8*1080N/4* AHD-H
Multi-mode input
analog; 8*1080P,8*1080N
Network only;8*1080P+8*960P,16*960P,4*3M,4*5M
hybrid; 4*1080P(analog)+4*1080P(network) ;
Motion Detection Each screen can be set to 192 (16 * 12)detection areas; multi-level
sensitivity can be set (Limited local channel)
AudioAudio compressionG.711A
Intercomsupport
Record &
playback
Record modemanual>alarm>motion detection>timing
Local Playback4ch(local input mode)
Search modeSearch by time, calendar, event, channel
Storage
& backup
Space occupation 1080P 20~30G/day*channel;720P ~20G/ day*channel ;960H 12~20G/
day*channel;audio;691.2M/ day*channel
Video storageHDD, network
Backup modeNetwork, USB hard disk, USB burner, SATA burner
External
Interface
Video input8ch BNC
Video output1ch VGA, 1ch HDMI
Loop VoutN/A
Audio input4ch RCA( Can be extended to 8ch)
Audio output1ch RCA
Alarm input 0( Can be extended to 4ch)
Alarm output0( Can be extended to 1ch)
Network interfaceRJ45 10M/100M
PTZ control1*RS485, Support kinds of PTZ protocols
USB2* USB 2.0 ports
HDD1*SATA ports (Max 6TB/per)
Wireless3G, WIFI (extend via USB)
GeneralPower supply12V/2A
Power Consumption <15W (without HDD)
Temperature0 degree-+55 degree
Humidity10%-90%
Working environment86kpa-106kpa
Dimension218mm*93mm
Weight(mother board)220g

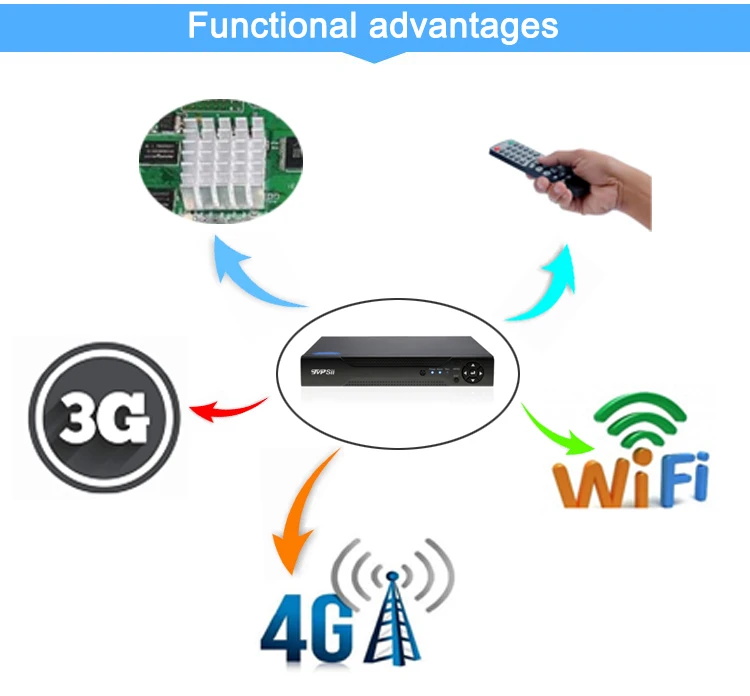

ahd hybrid dvr functional advantages picture 01

Our Surveillance Video Recorder have heat sink,remote control,3G(4G) function,WIFI function and so on, quality assurance.

Hybrid AHD DVR shipping time and ways



  • 1.Russian Federation: 7-22 days By RETS-Express

  • 2.Brazil: 15-30 days E-Packet

  • 3.East Asia (Japan and Korea): 7-15 days EMS or E-Packet

  • 4.Southeast Asia: 7-15 days E-packet or Singapore Post

  • 5.Central Asia and South Asia: 7-20days China post

  • 6.West Asia (Israel): E-Packet; Netherlands Post; Swiss Post, about 7-15 days

  • 7.United States and Canada: 7-15 days E-Packet

  • 8.Europe: E-Packet; Netherlands Post; Swiss Post, about 7-15 days

  • 9.Oceania (Australia and New Zealand): 7-15 days E-Packet

  • 10.DHL (America and Europe):3-10days;SPSR(Russian Federation):7-18days



​Friendly Reminder:

  • we only spent two days (48 hours)  for sent parcel , have tracking number and tracking number information,Thanks!

  • if you choose DHL for sent goods, please make sure that your address is not in remote areas for DHL,because it will produce huge transportation costs for remote areas, this also need pay by buyer,Thanks!

  • if you have some request for custom clrearance and Tariff, please leave message in order or sent messages by other communication APP,Thanks!

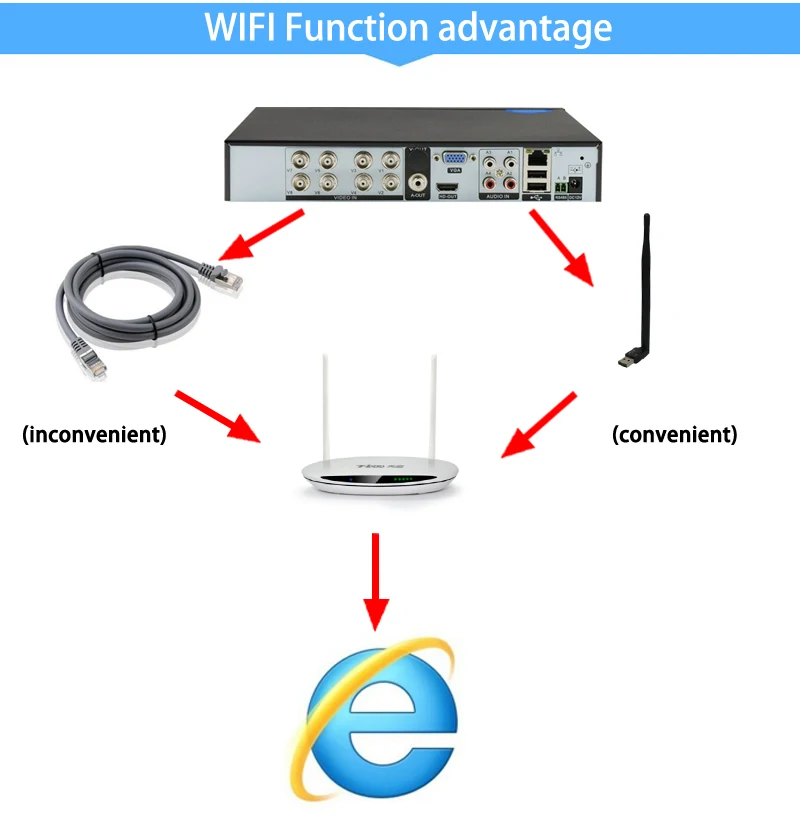

If you want to use WIFI function , please click the following button to buy USB WIFI Antenna Module,Thanks!



click here buttonhd buy now button

XMeye 8 Channel 8CH 1080N 5 in 1 Coaxial Hybrid Wifi TVi CVI IP NVR AHD DVR picture 05

HTB1HC6laAfb_uJkSne1q6zE4XXa7

Power Adapter StandardHD power standard picture 01

Hisiclion Chip Dahua Exterior Metal Case 16 Channel 1080P,1080N,960P,720P,960H Four in One TVi NVR AHD DVR Accessories picture 01

 XM ahd dvr and cctv camera remote control by computerand phone

tvpsii factory

factory certification

orders free gift

11

NOTICE:

Q:  it always cause problems in trade between countries, for example , bad weather for delay, custom problem , post worker broken it, and so on.

A:if you have any problem, please frist contact us, not easy input dispute or give me a bad feedback,  we will try our best to help you reslove problem ,We welcome those friendly customers,Thanks!
