PDA3506 Android 5.1OS Printer Courier PDA with 4G Wifi NFC BT 3G SIM Card RFID Reader Barcode Scanner

PDA3506 Android 5.1OS Printer Courier PDA with 4G Wifi NFC BT 3G SIM Card RFID Reader Barcode Scanner
  • Продавецpopularitywork.info
  • Список ценUS $214.19piece
  • Продажная ценаUS $214.19piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,8 (505)

Oписание продукта


Attention:convenient charging with optional charge cradle.buy cradle pls visit this link:


Attention: optional extra battery,Buy extra battery pls visit this link:


Free Shipping AliExpress Standard Shipping, usually you will got it within 17-28 business dyas.

If you want 3-8 business days to get your order, please choose DHL/Fedex/EMS/TNT


Product Features

Safety, Stability and High Speed Processing:

Android 7.0 system with Cortex-A53 64bit Quad-Core, 2G RAM 16G ROM, can run multiple tasks simultaneously, smooth operation which compatible with third-party Android apps

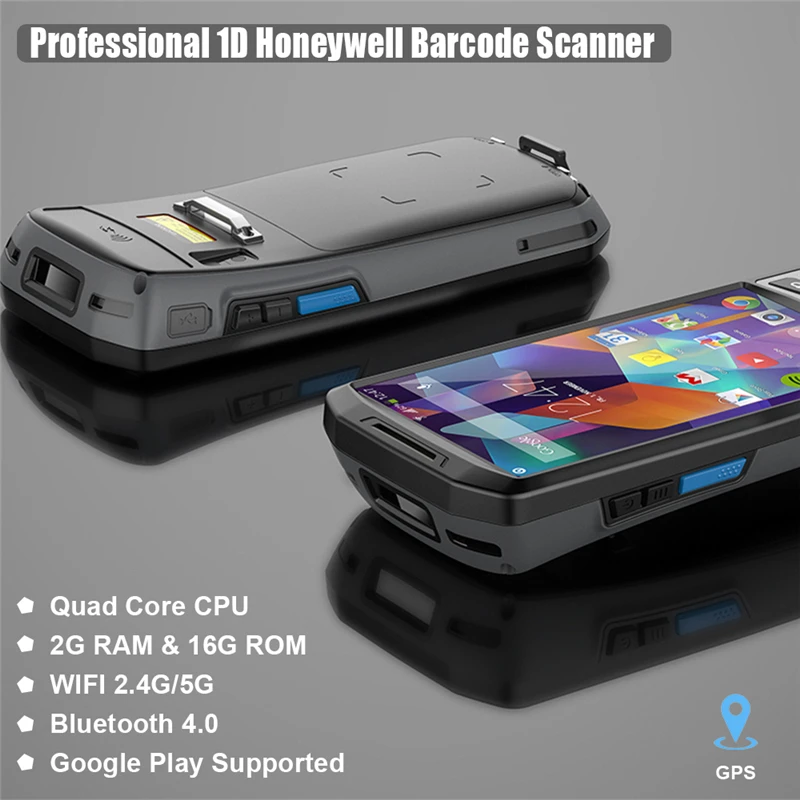

Integrated Honeywell N6603 2D Scaner:

Which using image scanning method that can read barcode on screen. Give you a push-to-play operation experience to help you efficiently achieve data collection.

Support 1D and 2D QR code:
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet etc.
Rugged, Durable handheld pos terminal.
With IP66 water and dust proof capability, workers can still expect reliable performance if they drop it to the concrete carelessly, using it in dusty or wet areas
4800mAh lithium rechargeable battery:
Continuous working time 12 hours, locked stand-by time more than 18 days. And the battery comes with insulation paste, please check if you peeled that off before usage.
Provide free SDK to develop customized software.
▶ 5.0 inches multi-point touch capacitive screen Pixel: 720*1280
▶ Eight-megapixel camera with LED automatic foucusing function
​▶ 4800mAh lithium rechargeable battery. Continuous working time 12 hours, locked stand-by time more than 18 days.
​▶ Support Loyverse pos ,  Pozool(Restaurant).  software, suitable for food distribution, restaurant, retail shop, fast food, home business, etc.
Product Description
Display Screen: 5.0 inch IPS 720 * 1280 px with Multi-point touch capactive screen
Expand Port: SIM card, Micro SD (TF) Card
Communication Interface: USB2.0
Input Mode: Standard Stylus, Handwriting, touching input or keyboard input
Battery Capacity: Rechargeable Li-polymer Battery, 3.7V 4800mAh
Frequency: 8ohm 1W speaker
Keys: 13pcs soft silicon key
Front: 1* scann key; 1* Delet key; 1*Enter key; 1*Back key; 1*Function key; 2* Hot keys
Side: Sound -+; 2*scan keys; 1*Custom key; 1*Power
Performance Parameter
CPU: ARM Cortex-A53 64bit Quad-Core 1.3G
Flash ROM: Standard 16G NAND Flash Storage
Micro SD/TF port (Max up to 32G)
Data Communication
WI-FI: Support IEEE802.11 a/b/g/n protocol, it need effective wireless LAN signal cover
FDD/TDD-LTE 4G: TDD-LTE (B38,B39,B40,B41),FDD-LTE (B1,B3)
WCDMA 3G: B1,B2,B5,B8
GSM 2G: GSM/EDGE/GPRS (850,900,1800,1900MHz)
Bluetooth: Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is 5-10m
Standard Modules
Camera: 8MP autofocus camera with flash
GPS: Support A-GPS
Operating Environment
Operating: -20℃ to 50℃
Storage Temperature: -25℃ to 70℃
Environment Humidity: 5%RH-95%RH(no condensation)
Drop Specifications: 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature
Roll Specifications: 1000 times/0.5m, roll on 6 sides contact area
Sealed Environment: IP66
Dimensions: 172mm(L) X 80mm(W) X 27mm(D)
Weight: 500g

SMT (1)




SMT (5)

if you want got Charge Cradle, please click this link:
SMT (8)SMT (11)HTB1QVExbMZC2uNjSZFnq6yxZpXaA_02SMT (4)SMT (7)SMT (12)
