Oписание продукта



5:1-80:1 90 degree Gearbox RV30 Worm Gear Speed Reducer With Output Shaft and Shaft Adaptor for 8mm input shaft of Nema 23 Stepper Motor



Note:

This link of worm reducer with shaft adaptor (use for 8mm motor shaft) and Single output worm shaft.

If motor shaft is 11mm with key, please order this link.

Worm Reducer RV30 for 11mm diameter key input shaft



With gear ratio 5:1,7.5:1, 10:1, 15:1, 20:1, 25:1, 40:1, 50:1, 60 :1 80:1for customers, Please leave message about the gear ratio you need.

When assemble this reducer with motor, the input motor shaft of 11mm diameter can connect directly. If diameter is 8mm, motor should mount shaft sleeve before fixing with worm reducer.



Click to send us message

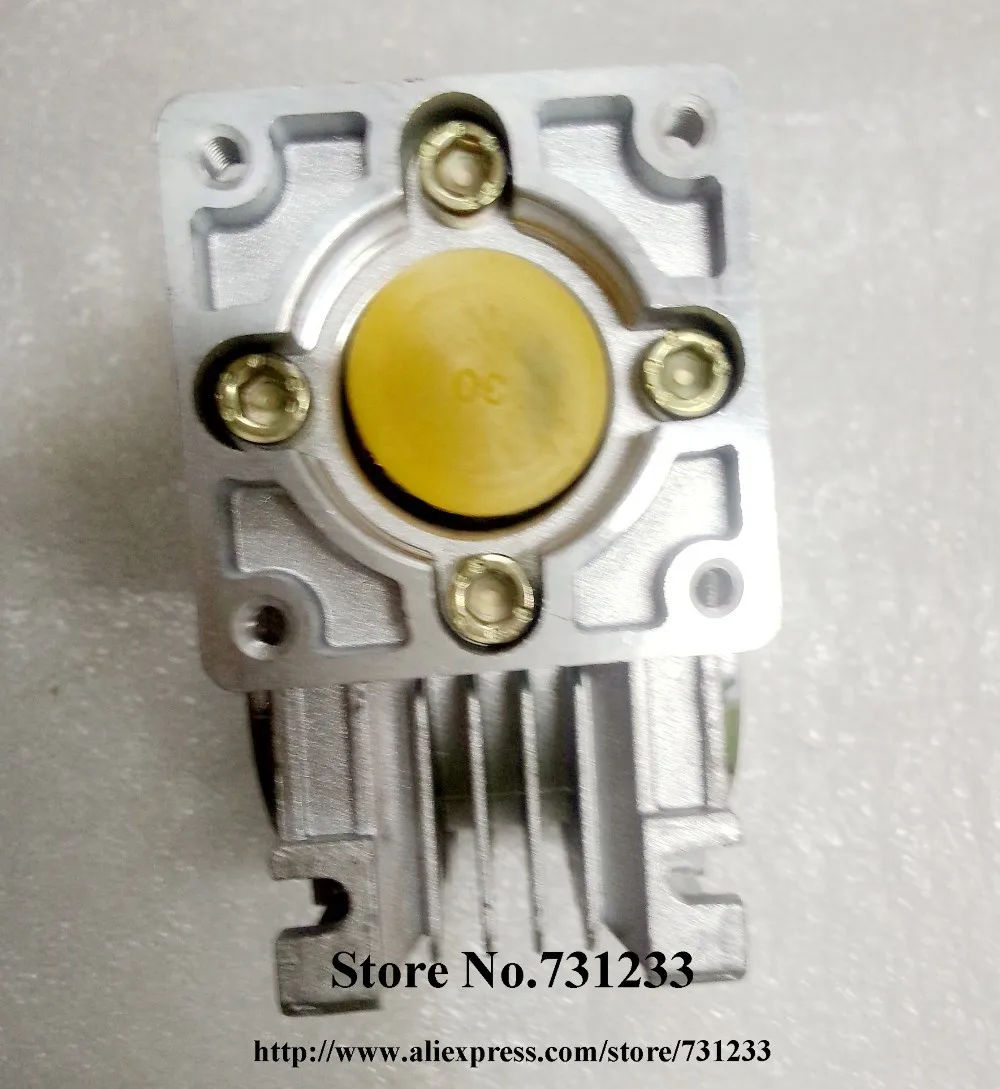

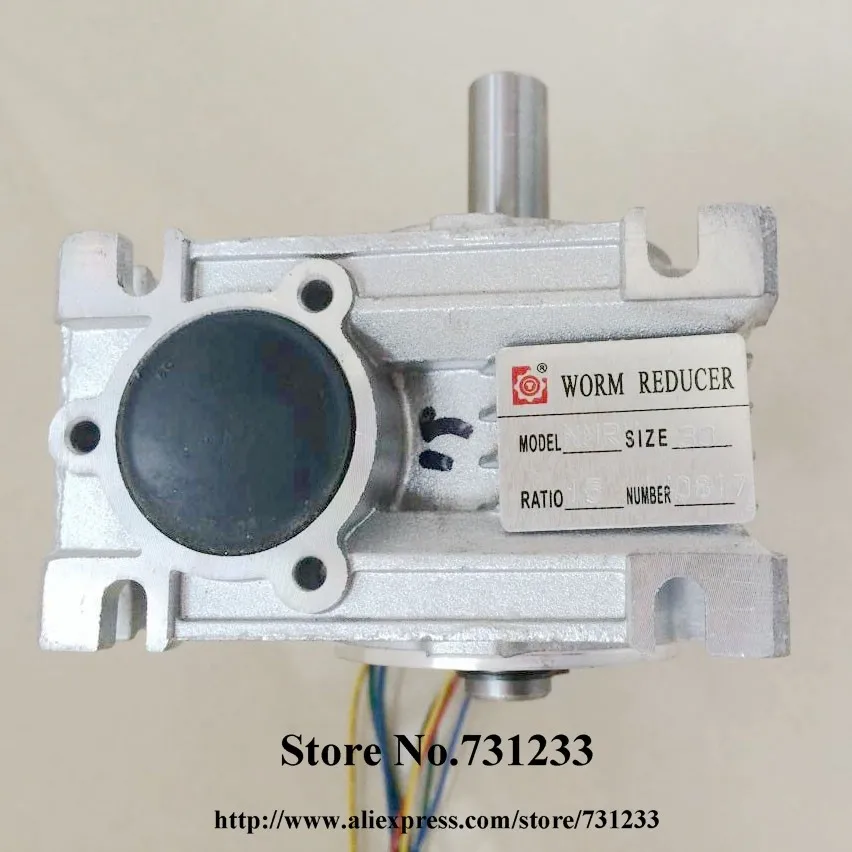

Worm reducer by our common camera without PS:



Material for worm reducer gearbox:
Worm wheel:  Nodular cast iron and bronze
Worm shaft:  20Cr steel.The hardness of surface is 56-62HRC with carbonized layer 0.3-0.5mm
Housing: aluminum with oven painting
Color: silver


Feature of worm reducer gearbox:
1) High quality aluminum alloy die cast gearbox
2) High accuracy worm gear and worm shaft
3) Less noise and lower temperature increase
4) Easy mounting and linking, high efficiency


The dimension of the RV30 worm reducer:

RV30-1RV30-2SHAFT






Packing including:

1pc* RV30 worm reducer
1* worm output shaft
1*input shaft sleeve


Worm reducer assembling with nema23 stepper motor and brushless motor
